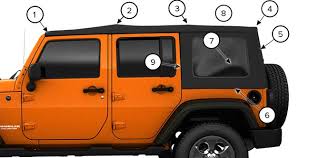

6– Body Side Retainer 9– Door Rail Retainer Removing the Rear Window 1. Unclip the Sun Visors and move them out of the way to reveal the Header Latches. Release, but do not unhook the Header Latches from the loops on the Windshield Frame. 2. Open the Swing Gate, and pull the first 3 inches of both Sail Panels from the body channel of the vehicle on both sides. It helps to pull down the 4-Bow a bit for this step. 3. Remove the Rear Window Retainers from the Swing Gate Bar Brackets. 4. Unzip the window completely starting from the passenger side. 5. Grab the Swing Gate Bar, rotate up and pull straight back from theSwing Gate Bar Brackets. Carefully store it in a safe place, so it won’t get scratched or dirty. 1. To remove the Side Quarter Panel Window, first release the rear and top Velcro flaps. Then, unzip the window starting from the lower corner. 2. Once the window is unzipped, release the Door Rail Retainer and the Body Side Retainer with a gentle pull.

3. Remove the window and repeat this process on the other side. Store both windows in a safe place, where they won’t get scratched or dirty. 1. Place your hand on the top of the 4-Bow and pull down on the material to untuck the Lower Rear Sail Panel Retainers. Fold and place the Sail Panels on top of your Wrangler Unlimited. 2. Next, unhook the Header Latches from the loops on the windshield frame and grasp the Header and 2 Bow and lift the top back towards rear of the vehicle. An extra pair of hands will help make this easier. 3. Fold the top material in an accordion-fold so the plastic retainers form the shape of a “W”. Rest the Header on the top of the rear portion of the deck. 4. Before lowering the top, be sure to open the rear Swing Gate to prevent possible damage to the rear center-mounted brake lamp. 5. Release the Side Bows by pressing down on the Latch Pedal above the front of the rear door. Push the top back to disengage. 6. Grasp the Side Bow and the 2 Bow area and slide the top rearward.

7. Slide the side bows off of the door frame track and lower the top down into the back of your vehicle. 8. As you’re lowering the top, gather the material and fold it with an accordion-style for function and a neat appearance. garage door company hertfordshireKeep all materials inside the vehicle.frameless shower door with towel bar 9. Be sure to tuck the Check Straps in so they don’t hang outside your vehicle.sliding shower doors at lowes 10. To secure the top wrap the Sunrider® Straps around the Side Bows and through the Body Side Retainer Slot and Velcro back onto itself.double glazed door ebay

An icon recognized throughout the world Best-in-Class fun to drive Fun and freedom go hand in hand. Wrangler incorporates classic Jeep® vehicle design elements to bring you all-weather capability that testifies to its off-road prowess. sliding barn door hardware floor guideRemovable tops and doors help turn it into the only open-air 4x4 vehicle on the market.cabinet door hinges ebay The official vehicle of summergarage door installation butler pa Summer is all about freedom and adventure. Whether you go hardtop, soft top or topless, Wrangler has it all. With the modular Freedom Top® hardtop, you can mix colors or match your vehicle with the body-color hardtop. Or choose the easy-to-store and easy-to-open Sunrider® soft top.

Select your roof option: Adventure, wherever you go Be sure to follow all instructions in Owner's Manual for removal of top, doors and lowering of windshield. Driving with the doors off and windshield down is for off-road use only. Open the doors to freedom Whether you want the standard fun that comes with Wrangler or more open-air freedom, you can choose from removable, full-framed doors with roll-up windows, available power windows and door locks, map pockets with mesh net and aluminum-forged hinges or removable half-framed doors featuring manual locks. Select your door configuration: Details that add to the experience Park turn lamps, headlamps and fog lamps Available heated power mirrors Jeep® vehicle Mopar® accessories Outfit your Wrangler to tackle the really big stuff with a wide range of Mopar® accessories or preassembled packages available for order that include: 5 Body Side Retainer 2. Open the Swing Gate and pull the first 3 inches of both Sail Panels from the body channel of the vehicle on both sides.

It helps to pull down the 3-Bow a bit for this step. 3. Remove the Rear Window Retainers from the Swing Gate Bar brackets. 5. Remove the Swing Gate Bar and window by rotating up and pulling straight back from the Swing Gate Bar Brackets. 1. To remove the Side Quarter Panel Window, first release the rear and top Velcro flaps. 2. Then, unzip the window starting from the lower corner. 3. Once unzipped, release the Body Side Retainer and the Door Rail Retainer. A gentle pull should do it. 4. Remove the window and repeat the process on the other side. Store your windows where they won’t get scratched or dirty. 1. Pull down on the 3-Bow to release some tension. Untuck the Lower Rear Sail Panel Retainers from the Soft Top. 2. Fold and place the Sail Panels on top of your Wrangler. 3. Pull the Drip Rail Retainers from the doorframe and slide the plastic sleeves back and over the Sunrider® Links. 4. Unlatch the Side-Bows from the door rails by pressing on the Latch Pedal from behind.
