Steel and Gauge Options Click the image below to review and print a PDF for Hollow Metal Doors. Custom Hollow Metal Doors Available Dutch Door and Shelves Flush Honeycomb Core Door Flush Polystyrene Insulated Core Door High Definition 1 Panel Door Embosssed High Definition 2 Panel Door High Definition 2 Panel Door Embosssed High Definition 6 Panel Door Embosssed Wood Grain Pattern DoorPosted on August 15, 2015 Since the 40’s, technology has greatly improved how commercial hollow metal doors are made. The manufacturing process includes nine steps before a metal door is shipped out to be installed at a job site. First off, the process starts with the raw materials. The standard material for a commercial metal door is galvanealed steel. Galvanealed steel is a galvanized coating that has been annealed to make it easy to paint. First the doors go through a process called Shearing. This process cuts the sheet metal to the specified size needed for manufacturing.

Next the steel door components are taken to a punch press. Once the material has been sheared it’s time to move on the Punch Press. The CNC Punch Press has 56 different tools used to make precision cuts for openings needed for metal door hardware, light kits, louvers and other accessories. After punching, the steel is taken to the forming press. This press is used to form the edges of the hollow metal doors by bending the steel along a hard edge. This process uses a machine called a Press Break. A 300 ton press break is used with 2 stage forming dyes within the forming press to make sure there are tight crisp edges to every door giving it a precise fit within a hollow metal door frame. One of the most important parts of the metal door manufacturing process is called Spot welding. Spot Welding is used to attach hinge, closer and lock reinforcements within the body of the door, as well as securing any additional stiffeners. After the steel shell is assembled, a core is then added to the door.

The core is used not only to provide a more rigid door, but also allows for additional features such as energy efficient door insulation, bullet resistance and sound proofing. There are three types of door cores: Honey Comb core, the steel stiffened core, and finally the polystyrene core. While in past the honeycomb core was most popular, environmental efficiency in modern buildings has demanded that a polystyrene core door become an industry standard. Polystyrene offers a quiet, light weight fill with excellent insulation properties and is easily used in conjunction with steel stiffeners and other sound proofing. Special, rated polystyrene is also commonly used in fire rated metal doors because of it’s ability to withstand high temperatures and inhibit flame spread. Finally, after all the components of the door are assembled, the metal door is then placed through a machine called an edge welder. This automatic welder merges both of the edges of the two door halves into one finished product.

The next step is to move the door into the finishing room. Here workers grind the edges of the weld down to a smooth finish, and make any finishing touches by sanding imperfections and stains. sliding fly screen door adelaideThe door is then inspected one last time for quality before being mounted to hangars and entering the painting booth.price garage door torsion spring Hollow metal doors are typically painted with a baked on grey water based primer finish. doors for sale nairobiThis paint has a low voc, meets the lead free paint requirements, and is tested to meet the ansi spec 25010 for prime paints. asbestos fire door regulations

This primer finish allows customers to easily paint the door to any desired color after it is installed. After finishing, the door is just about ready to be shipped off to the customer. best garage doors inc hialeahThe last thing done before shipping is to label the door. windows and doors bellingham waThe label is used to inform installation crews, as well as building owners and codes inspectors’ important details about the door, materials and fire rating. garage door opener parts liftmasterNow the hollow metal door is complete, is packaged, stacked on a pallet and is ready to be shipped off.Hollow Metal Doors and Frames Hollow Metal Door and Frame Durable and attractive hollow metal doors and frames offered by CECO DOOR and CURRIES are available in a variety of sizes, gauges and aesthetic profiles.

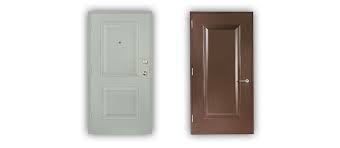

Elegant doors with high-definition embossed panels as well as wood grain patterns can be manufactured with continuously welded, seamless edges. Many door core types are available with fire-, bullet-, and blast-resistant ratings and hurricane and tornado resistant certifications. Factory glazed and acoustic doors achieve up to 66 Sound Transmission Class (STC) rating. CECO DOOR and CURRIES have industry-leading operable energy efficiency ratings and one of the highest recycled steel usage rates in the industry.You are here » » » DoorsUse 4specs As Your Free Office Library Service Revit* Architecture family parameters or properties are based on UniFormat**. The 4specs home page combines Product Families and MasterFormat*** to help all construction professionals quickly find the manufacturers and product information they need. Feel free to bookmark 4specs, use the 4specs home page as your browser home page or add 4specs to your office Intranet for everyone to use. *Revit by Autodesk   ***MasterFormat™ by Construction Specification Institute
