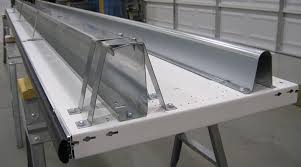

> > Garage Door Struts Garage door struts stiffen door sections to prevent them from bending or breaking. They also allow the door to open and close smoothly. If the sections are not rigid, the garage door will bind as it opens and closes. Most residential doors use 2" struts, but residential and industrial doors over 16 feet wide often use three inch struts. Struts are normally two inches shorter than the door width. Residential single car doors typically do not need struts unless it is a steel door that is motor-operated. On these a strut across the top section is recommended to prevent the top of the door from bending if the opener force is not adjusted properly. Doors over 10 feet wide usually have at least one strut across the top of the top section. A 16' wood door requires at least three struts, but steel doors often need only one. On double wide doors made of 25 or 26 gauge steel we recommend three struts, one across the tops of the bottom and top sections, and one in the middle of the door centered between the other two struts.

Strutting a door for hurricane areas requires at least one strut for each section and an extra one for the bottom of the door. Also required are extra track brackets and heavier hinges. Special are often needed on doors with double end hinges. The ends of the shafts are threaded and nutted to prevent the rollers from sliding out of the hinges during a hurricane. When adding struts to your door it is important to factor the additional weight. buy pre hung interior french doorsTwo inch struts weigh about 10 ounces per foot. shop front doors surreyIf you add over 20 pounds of struts to your door, we recommend replacing your springs. french door refrigerator slate

Otherwise, the extra weight will shorten the life of your garage door opener. Garage door struts for eight and nine foot wide doors can ship by FedEx or UPS, but longer struts will not. These would need to ship over the road. With crating the cost for a single 16' strut can cost $200-$300, so we don't recommend that as an option. A better option for doors over nine feet wide is to order shorter struts and connect them with one of our strut junction kits listed below. kitchen cabinet doors 600 x 720You can also watch our video for assembling the kits. six panel doors at lowesFor local pickups we do stock the 16 foot 2 1/4" struts and the 18 foot 3" struts. ideal garage door extension springsYou'll want to make sure you have a way to transport the long struts without damaging them or your vehicle.ipad 2 screen replacement sacramento

Struts frequently bend when an opener lifts a 16 foot steel door that has a broken spring. This will often leave a one to three inch gap in the center of the top section. These struts can be straightened by locking the door, removing the strut, and straightening it. You will then need to straighten the top section and reinstall the strut. UN: Units by which each part is sold Price: Cost per unit (for smaller quantities) GarageWorks Steel is a prime U.S. manufacturer of steel strut for garage door reinforcement. Available in various size, length, thickness and multiple Windload configurations. Attach garage door track to overhead support and brace electric garage door openers with Perforated Angle from GarageWorks Steel. Available in multiple sizes, lengths and thickness. For the discerning homeowner when a more refined appearance is desired, our earth-friendly EcoCoat™ white powder coated angle fits the bill. Energy efficient high-tech roll forming machine allows GarageWorks Steel to produce large quantities of garage door angle and strut with custom lengths and custom hole placement.

Offering a variety of garage door struts, perforated angle and accessories. Ships within 2 Days from Denver, CO, Cullman, AL, and Indianapolis, IN. All GarageWorks Steel products are made in the United States from 100% Recyclable American Steel.Clopay’s Garage Door Installation Manuals are available for download in PDF format.  Adobe Acrobat Reader 5.0 or better is required. Steel Residential Garage Door Installation Instructions and Maintenance - 1 and 2 Layer Construction In this manual you will find safety information, how to prepare the opening, installing the new door, painting, maintenance, and replacement parts. File size: 4.8 MB Insulated Steel Residential Garage Door Installation Instructions and Maintenance - 3, 4, and 5 Layer Construction (Used for Canyon Ridge®Collection, Coachman® Collection and 3-layer Premium Series Doors) In this manual you will find safety information, how to prepare the opening, installing the new door, painting, maintenance, replacement parts, and warranties for the Premium Series.

Coachman® Collection Garage Door Supplemental - Painting and Repairing Instructions (see Insulated Steel (above) for Installation and Maintenance Instructions) In this supplemental you will find painting, center alignment and lift handle installation, section stacking, strut requirements, operator reinforcements and attachment, window grille removal, flag bracket, and warranty. Canyon Ridge® Collection Limited Edition Series Supplemental (See Insulated Steel Residential Garage Door Instructions (above) for full installation instructions.) In this manual you will find finishing, section stacking, strut requirements, operator reinforcement, window glass and grilled removal, lift handle installation, flag bracket, and warranty information. Canyon Ridge® Collection Ultra-Grain® Supplemental In this manual you will find periodic composite overlay maintenance, section stacking, strut requirements, operator reinforcement, window glass and grilled removal, lift handle installation, flag bracket, and warranty information.

Steel Residential Garage Door Instructions (For doors with Finger Protection Section Joints) In this manual you will find safety information, how to prepare the opening, installing the new door, painting, maintenance, replacement parts, and warranty. Wood Garage Door Installation Instructions and Maintenance In this manual you will find safety information, how to prepare the opening, installing the new door, painting, maintenance, replacement parts, and warranty. (For Reserve® Collection Semi-Custom and Custom / Limited Edition Wood Doors see supplemental instructions.) Instructions for painting your wood door. Reserve® Collection Custom and Limited Edition Supplemental Instructions Instructions for hardware attachment to custom wood doors. Reserve® Collection Semi-Custom Supplemental Instructions In this manual you will find information on section heights, springing, track radius/headroom, bottom bracket attachment, strutting, opener recommendation, and lift handle hardware and attachment.

Avante™ Collection Garage Door Installation Instructions and Maintenance In this manual you will find safety information, how to prepare the opening, installing the new door, painting, windows, maintenance, replacement parts, and warranty. Gallery® Collection Garage Door Installation Instructions and Maintenance - 1 and 2 Layer Construction Gallery® Collection Garage Door Installation Instructions and Maintenance - 3 Layer Construction Supplemental Instructions for Extended Height Garage Doors Instructions include bottom bracket installation, strut requirements, section stacking, assembling and installing track, and torsion spring installation. EZ-SET® Torsion Spring System Assembly Installation Instructions EZ-SET Spring™ Extension Assembly Installation Instructions Standard Torsion Spring Assembly Instructions Standard Extension Spring Assembly Instructions Additional Instructions: Special Tracks Low Headroom Conversion Kit Instructions

For use with steel doors only. Double Track Low Headroom Supplemental Instructions Instructions include attaching LHR bottom brackets to door, standard extension spring, and front mount torsion spring. High Lift Track Supplemental Instructions Instructions include break-away style track, straight-incline style track, additional requirements for high lift, special locking, and high lift track layout and dimensions. Additional Instructions: WindCode® Garage Doors WindCode® Garage Doors: W1 Instructions cover addition of struts, jamb configuration and attachment, and opener reinforcement. WindCode® Garage Doors: W2 or higher Instructions cover attachment of hinges, top bracket installation, addition and attachment of struts, jamb / track configuration, and track bracket placement. Lexan™ Windows Cleaning and Care Instructions See a list of approved cleaning products, how to minimize hairline scratches, removal of graffiti and paint, and important "Don'ts".
